Rockmore taper drill steel, 12° taper end on 7/8 in hex (render)

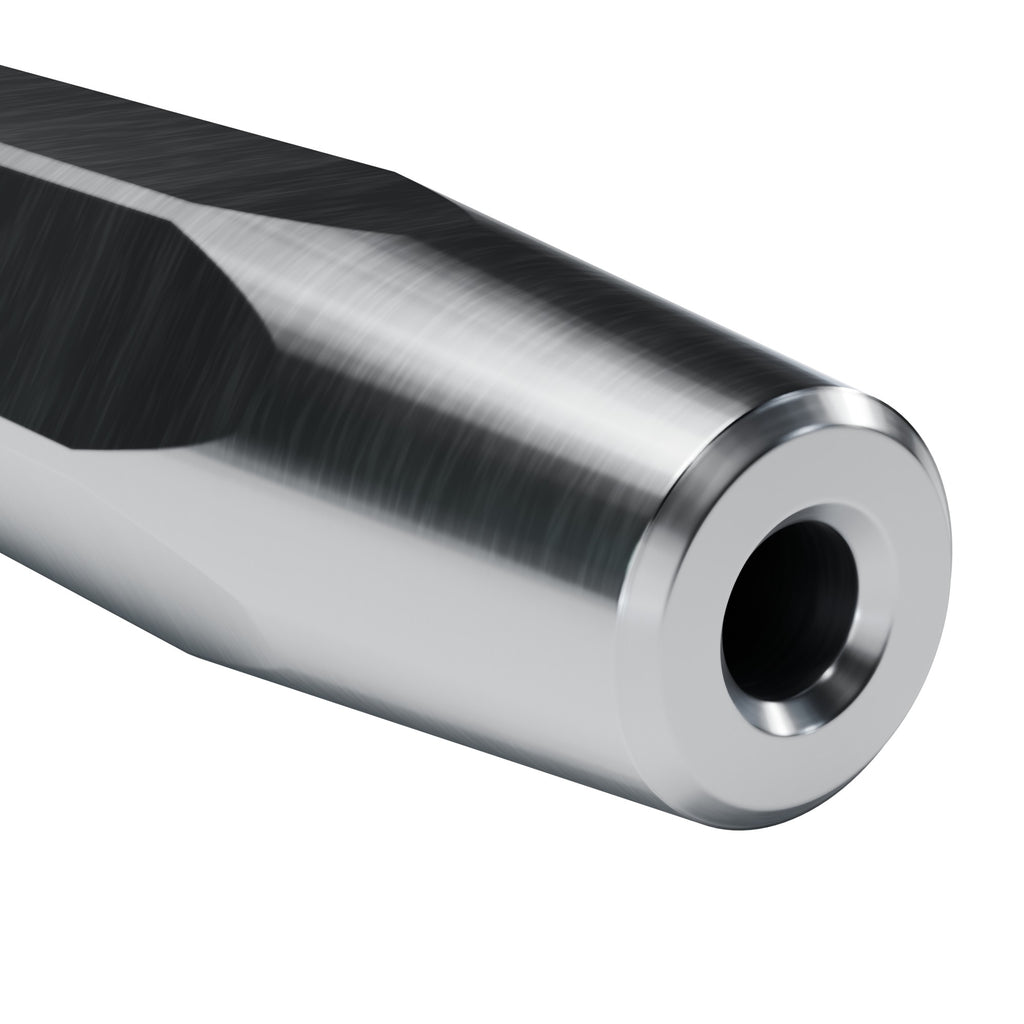

  • Rockmore taper drill steel, 12° taper end on 7/8 in hex (render)

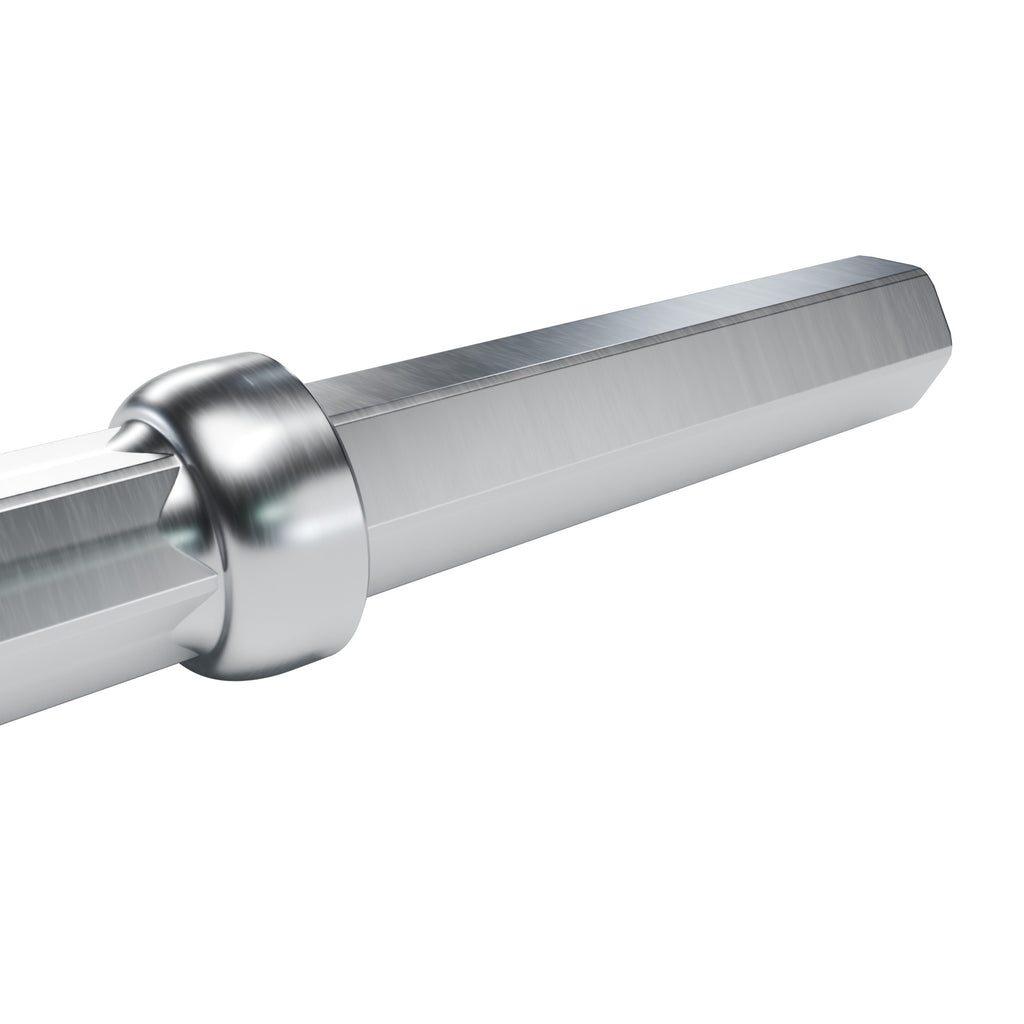

  • Rockmore taper drill steel, 7/8 in hex x 4-1/4 in shank (render)
  • Rockmore taper drill steel, 12° taper end on 7/8 in hex (render)
  • Rockmore taper drill steel, 7/8 in hex x 4-1/4 in shank (render)

3D render from OEM drawings, not a photograph.
Rockmore 12° Taper Drill Steel, 7/8 in hex × 4-1/4 in

Rockmore · Taper drill steel

Rockmore 12° Taper Drill Steel, 7/8 in hex × 4-1/4 in

Part no.
22H-610-12-C

Taper drill steel at 12° with a 7/8 in hex × 4-1/4 in shank for hand-held drills. Carburized or HF (induction) hardened. Lengths from 2 ft (610 mm) to 16 ft (4875 mm).
Available to order
Quote on request

Add what you need, then send the list. We reply with pricing, availability and freight; nothing is charged until you order.

Dimension drawing: Rockmore 12° Taper Drill Steel, 7/8 in hex × 4-1/4 in Shank 7/8 in hex × 4-1/4 in. Taper 12°. Length 2 ft (610 mm), from the collar. 12° taper 7/8 in hex × 4-1/4 in shank 2 ft (610 mm)
Length2 ft (610 mm)
Heat treatmentCarburized
Shank7/8 in hex × 4-1/4 in
Taper12°
OEM catalogue numberA48472
