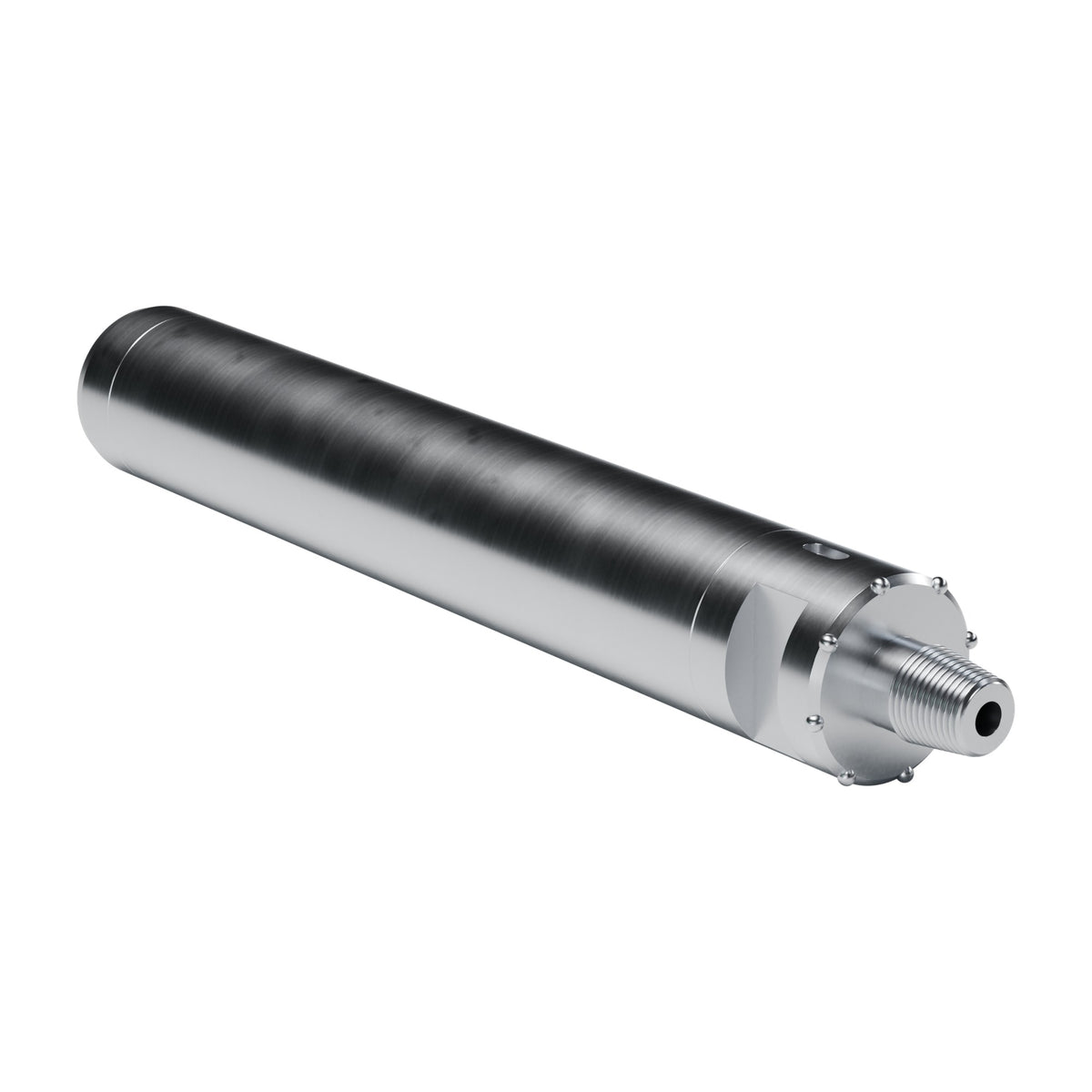

Rockmore ROK 650M DTH hammer, 2-7/8 API REG pin top sub, back reaming buttons (render, without bit)
  • Rockmore ROK 650M DTH hammer, 2-7/8 API REG pin top sub, back reaming buttons (render, without bit)
  • Rockmore ROK 650M DTH hammer, 2-7/8 API REG pin top sub, back reaming buttons (render, without bit)

Representative image, not a photograph. The actual part may differ.
Rockmore ROK 650M DTH Hammer

Rockmore · DTH hammers

Rockmore ROK 650M DTH Hammer

Part no.
ROK650M-003

ROK 650M down-the-hole hammer. Takes QL6/QL60 shank bits. Top connections 2-7/8 in API Reg pin, 3-1/2 in API IF pin or 3-1/2 in API Reg pin. Recommended bit diameter 165–178 mm. Operating air pressure 10.4–24.1 bar. Heavy duty diameter. In-Hole Bit/Driver sub disassembly. Lower air consumption. Top sub with back reaming buttons.
Available to order
Quote on request

Add what you need, then send the list. We reply with pricing, availability and freight; nothing is charged until you order.

Dimension drawing: Rockmore ROK 650M DTH Hammer Top connection 2-7/8 in API Reg pin. Bit diameter 165–178 mm. Bit shank QL6/QL60. 2-7/8 in API Reg pin Bit Ø 165–178 mm QL6/QL60 bit shank
ShankQL6/QL60
DetailsTop sub 2-7/8" API REG PIN; Bit diameter 165–178 mm; Air pressure 10.4–24.1 bar; Top Sub With Back Reaming Buttons; Heavy Duty Diameter; Lower Air Consumption; In-Hole Bit/Driver Sub Disassembly
OEM catalogue numberA50177
