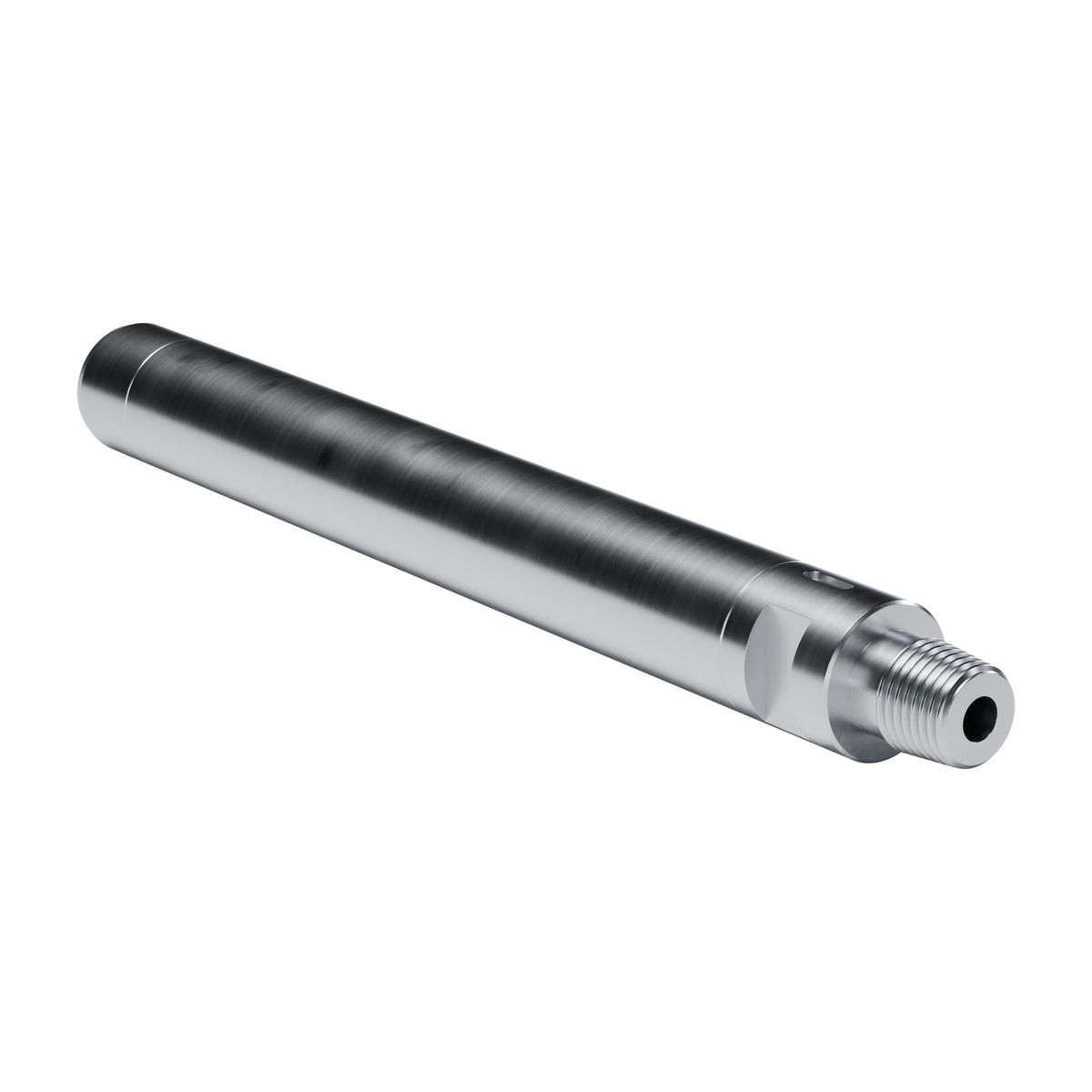

Rockmore ROK 400 DTH hammer, 2-3/8 API IF pin top sub (render, without bit)
  • Rockmore ROK 400 DTH hammer, 2-3/8 API IF pin top sub (render, without bit)
  • Rockmore ROK 400 DTH hammer, 2-3/8 API IF pin top sub (render, without bit)

Representative image, not a photograph. The actual part may differ.
Rockmore ROK 400 DTH Hammer

Rockmore · DTH hammers

Rockmore ROK 400 DTH Hammer

Part no.
ROK400-004

ROK 400 down-the-hole hammer. Takes 340A or TD 40 shank bits. Top connections 2-3/8 in API IF pin, 2-3/8 in API Reg box, 2-3/8 in API Reg pin, 2-7/8 in API Reg box, 2-7/8 in API Reg pin or CUBEX #24 pin with splines. Recommended bit diameter 110–125 mm. Operating air pressure 10.4–24.1 bar.
Available to order
Quote on request

Add what you need, then send the list. We reply with pricing, availability and freight; nothing is charged until you order.

Dimension drawing: Rockmore ROK 400 DTH Hammer Top connection 2-3/8 in API IF pin. Bit diameter 110–125 mm. Bit shank 340A. 2-3/8 in API IF pin Bit Ø 110–125 mm 340A bit shank
Shank340A
DetailsTop sub 2-3/8" API IF PIN; Bit diameter 110–125 mm; Air pressure 10.4–24.1 bar
OEM catalogue numberA50042
